Note: The following descriptions are also applicable to MicroStation
Range Import
Range Import gives users the flexibility to import part of an Excel
worksheet. You can specify a range of cells for importing, then click
Range Import button
on the AutoTable toolbar in Excel.

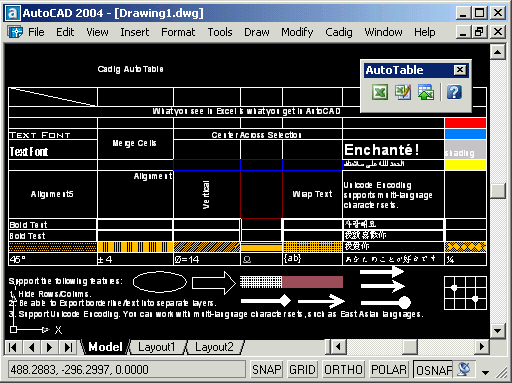

What you see in Excel is what you get in AutoCAD.
The most accurate Excel to AutoCAD (LT) import tool in the world
o Horizontal alignment - Left, Right and Center of the cell
o Vertical alignment - Top, Bottom and Middle of the cell
o Rotated upwards or downwards (90 or 270 degrees)
o Vertical text
o Wrap text
o Merge cells
o Center across selection
o Support Math symbols etc
o Cell shading & patterns
o Basic Excel AutoShapes
o Border style (dashed line, double-line and etc)
o Text orientation
Full control of font type/style/size/color.

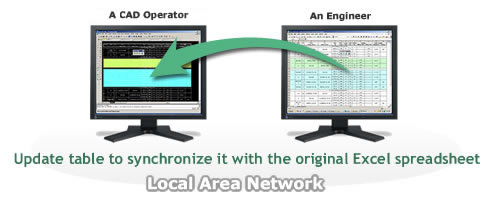

Support Local Area Network (LAN).
This means that one person (an engineer, for example) can use Excel
to build an electrical panel schedule or a parts list and another person
(an AutoCAD operator, for example) working in another room (or across
town) can put the panel schedule or parts list on the drawing. The engineer
does not need to know anything about AutoCAD or have access to AutoCAD
and the CAD operator does not need to use Excel.
|
